miosix::FilesystemBase Class Reference

#include <file.h>

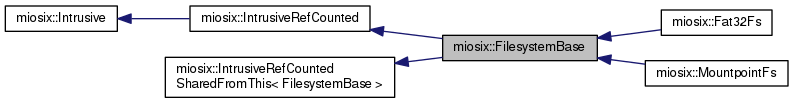

Inheritance diagram for miosix::FilesystemBase:

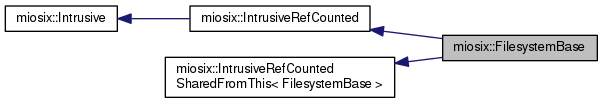

Collaboration diagram for miosix::FilesystemBase:

Public Member Functions
	FilesystemBase ()
virtual int	open (intrusive_ref_ptr< FileBase > &file, StringPart &name, int flags, int mode)=0
virtual int	lstat (StringPart &name, struct stat *pstat)=0
virtual int	unlink (StringPart &name)=0
virtual int	rename (StringPart &oldName, StringPart &newName)=0
virtual int	mkdir (StringPart &name, int mode)=0
virtual int	rmdir (StringPart &name)=0
virtual int	readlink (StringPart &name, std::string &target)
virtual bool	supportsSymlinks () const
short int	getFsId () const
virtual	~FilesystemBase ()
Public Member Functions inherited from miosix::IntrusiveRefCountedSharedFromThis< FilesystemBase >
	IntrusiveRefCountedSharedFromThis ()
intrusive_ref_ptr< FilesystemBase >	shared_from_this ()
intrusive_ref_ptr< const FilesystemBase >	shared_from_this () const
virtual	~IntrusiveRefCountedSharedFromThis ()

Protected Attributes
const short int	filesystemId
	The unique filesystem id, used by lstat.
int	parentFsMountpointInode
	The inode of the directory in the parent fs.

Additional Inherited Members
Protected Member Functions inherited from miosix::IntrusiveRefCounted
	IntrusiveRefCounted ()
	IntrusiveRefCounted (const IntrusiveRefCounted &)
IntrusiveRefCounted &	operator= (const IntrusiveRefCounted &)

Detailed Description

All filesystems derive from this class. Classes of this type are reference counted, must be allocated on the heap and managed through intrusive_ref_ptr<FilesystemBase>

Constructor & Destructor Documentation

miosix::FilesystemBase::FilesystemBase

(

)

Constructor

miosix::FilesystemBase::~FilesystemBase ( )

virtual

Destructor

Member Function Documentation

short int miosix::FilesystemBase::getFsId ( ) const

inline

Returns

filesystem id

virtual int miosix::FilesystemBase::lstat ( StringPart &  name, struct stat *  pstat  )

pure virtual

Obtain information on a file, identified by a path name. Does not follow symlinks

Parameters

name	path name, relative to the local filesystem
pstat	file information is stored here

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

virtual int miosix::FilesystemBase::mkdir ( StringPart &  name, int  mode  )

pure virtual

Create a directory

Parameters

name	directory name
mode	directory permissions

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

virtual int miosix::FilesystemBase::open ( intrusive_ref_ptr< FileBase > &  file, StringPart &  name, int  flags, int  mode  )

pure virtual

Open a file

Parameters

file	the file object will be stored here, if the call succeeds
name	the name of the file to open, relative to the local filesystem
flags	file flags (open for reading, writing, ...)
mode	file permissions

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

int miosix::FilesystemBase::readlink ( StringPart &  name, std::string &  target  )

virtual

Follows a symbolic link

Parameters

path	path identifying a symlink, relative to the local filesystem
target	the link target is returned here if the call succeeds. Note that the returned path is not relative to this filesystem, and can be either relative or absolute.

Returns

0 on success, a negative number on failure

virtual int miosix::FilesystemBase::rename ( StringPart &  oldName, StringPart &  newName  )

pure virtual

Rename a file or directory

Parameters

oldName	old file name
newName	new file name

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

virtual int miosix::FilesystemBase::rmdir ( StringPart &  name )

pure virtual

Remove a directory if empty

Parameters

name	directory name

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

bool miosix::FilesystemBase::supportsSymlinks ( ) const

virtual

Returns

true if the filesystem supports symbolic links. In this case, the filesystem should override readlink

virtual int miosix::FilesystemBase::unlink ( StringPart &  name )

pure virtual

Remove a file or directory

Parameters

name	path name of file or directory to remove

Returns

0 on success, or a negative number on failure

Implemented in miosix::MountpointFs, and miosix::Fat32Fs.

---

The documentation for this class was generated from the following files:

• file.h
• file.cpp
